Summary

Flexible couplings will operate the best function and have a longer working, easy installation, convenient maintenance, small size and light weight.As long as the relative displacement between shafts is kept within the specified tolerance, B couplings will operate the best function and have a longer working Life.Thus it is demanded in medium and minor power transmission systems driven by moters, such as speed reducers, hoists, compressos, conveyers, spinning and weaving machines and ball mills. TK elastic block couplings

Permittable relative displacement:

Radial displacement: 0.2 to 0.6 mm

Angle displacement: 0 ° 30 '~ 1 ° 30'

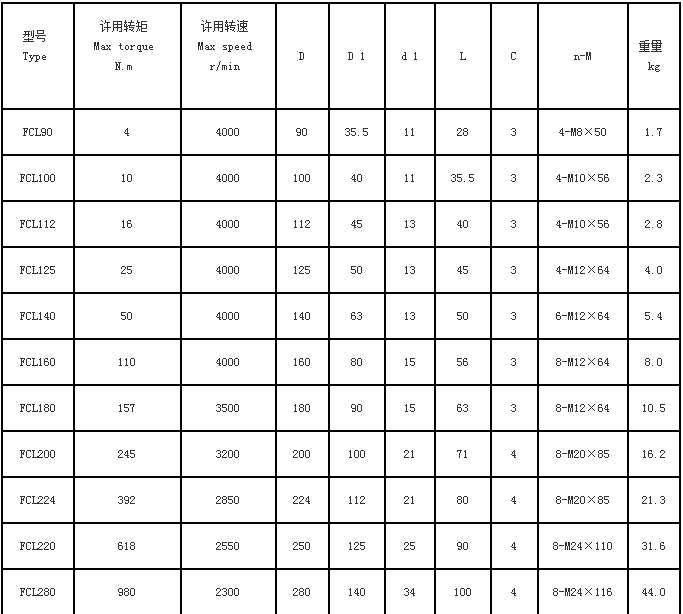

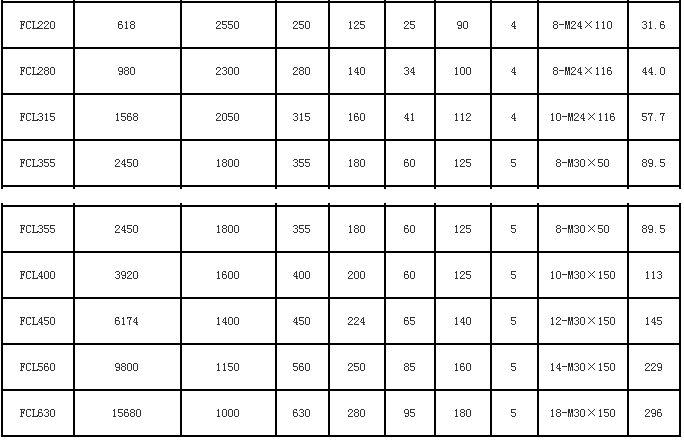

Dimension parameter Size chart & Parameter

Overview

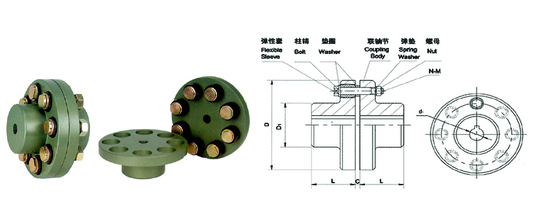

FCL-type flexible sleeve pin coupling is characterized by simple structure, easy installation, easy to replace, small size, light weight, and thus widely used, if the installation can be adjusted to maintain the relative displacement of the two axes within the specified range, then Couplings will have satisfactory performance and long service life. It can be widely used in a variety of medium and low power drive shafts driven by electric motors, such as reducers, cranes, compressors, conveyors, textile machines, hoists, ball mills and so on.

Elastic sleeve pin coupling permissible relative displacement: Radial displacement: 0.2 to 0.6 mm Angular displacement: 0 ° 30 'to 1 ° 30'

• LTZ (formerly TLL type) with b
• Pure shear rubber coupling
