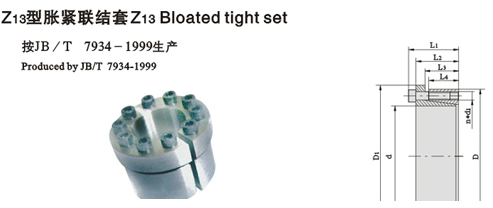

13 type expansion joint sets

Features: Z13-type expansion sleeve inside and outside the cone with a hexagonal bolts tightening, with a long surface, and good for neutral, suitable for high rotation accuracy and the need to pass a larger load of the occasion.

Tag example

Inner diameter d = 130mm, diameter D = 180mm Z2-type expansion joint sleeve: expansion sleeve Z2-130 × 180

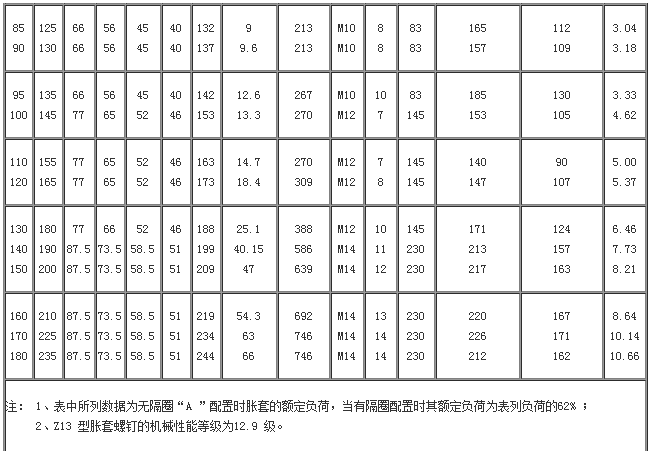

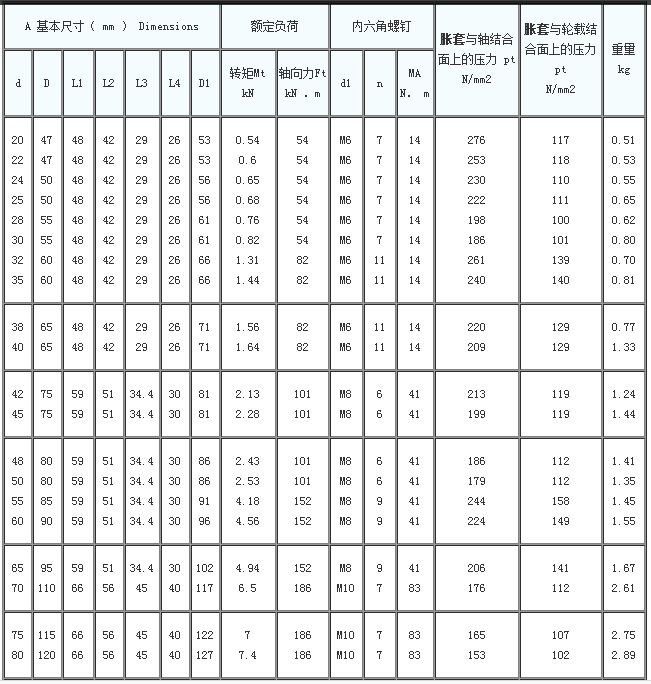

Z13-type expansion of the basic size and parameters of the joint:
