M (the original ML) series of plum-shaped elastic coupling (GB5272-2002)

ML series of plum-shaped flexible coupling of the scope and performance characteristics

Plum-shaped elastic coupling has the following characteristics: flower-shaped elastic coupling structure is simple, radial size is small, light weight, small inertia, suitable for high-speed occasions, plum-shaped flexible coupling work is stable and reliable, with a good reduction Vibration, cushioning and electrical insulation. Plum-shaped elastic coupling with a large axial, radial and angular compensation capacity, plum-shaped flexible coupling high-strength polyurethane elastic components wear and tear oil, carrying capacity, long life, safe and reliable, coupling No lubrication, maintenance of less work, continuous long-term operation.

Plum-shaped elastic coupling is mainly used for starting frequent, positive and negative, medium and high speed, medium torque and high reliability of the workplace, such as: metallurgy, mining, petroleum, chemical, lifting, transportation, light industry, Pumps, fans and so on. Working temperature of -35 ℃ ~ +80 ℃, transmission nominal torque 25 ~ 12500Nm, allowable speed 1500 ~ 15300r / min.

ML series of plum-shaped elastic coupling mainly by the two teeth with a close contact and radial compression to pass the torque, when the two axes have a relative offset, the elastic components of the corresponding elastic deformation, play an automatic compensation.

           Compared with other couplings, plum-shaped elastic coupling has the following characteristics:

(1) stable and reliable, with good vibration, cushioning and electrical insulation performance.

(2) simple structure, radial size is small, light weight, small inertia, suitable for high-speed occasions.

(3) has a large axial, radial and angular compensation capacity.

(4) high-strength polyurethane elastic components wear-resistant oil, carrying capacity, long life, safe and reliable.

(5) Couplings without lubrication, maintenance work less, continuous long-term operation.

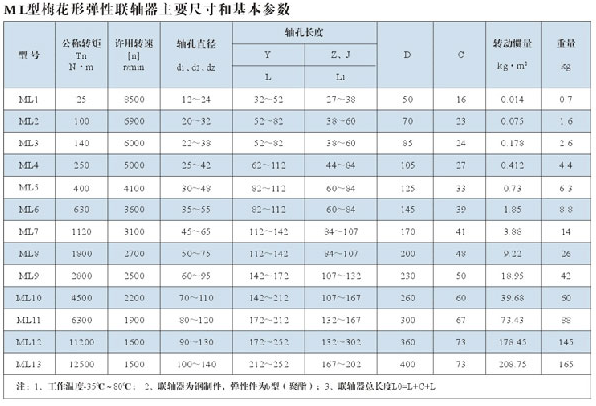

      LM (original ML) series of plum blossom elastic coupling basic performance parameters and the main dimensions
