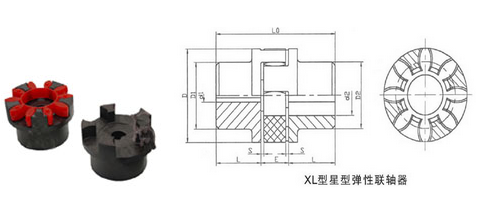

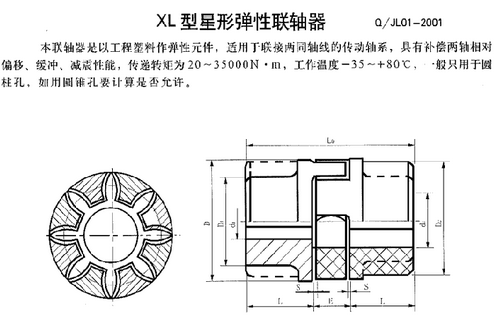

XL star type elastic coupling (JB / T 10466-2004)

● XL-type star elastic coupling of the scope and performance characteristics of high-elastic coupling, pump sleeve coupling, LX (XL) -type star elastic coupling

The coupling of the polyurethane elastomer is limited by the convex claw block to avoid the internal deformation caused by the impact and centrifugal force generated by the external deformation; convex convex large concave, so that the involute teeth on the surface pressure is small, Even if subjected to overload, the teeth will not wear or deform. The coupling is made of engineering plastic as a flexible element, suitable for connecting the two coaxial axis of the drive shaft, with compensation for the relative deviation of the two axes, cushioning, shock absorption, wear resistance, to adapt to the general, transmission torque 20- 35000.NM, operating temperature -35- +80 degrees Celsius and interchange with the German ROTEX coupling.

Application range and performance characteristics of star elastic double flange coupling (JB / T 10466-2004)

The coupling is made of engineering plastic as a flexible element, suitable for connecting the two coaxial axis of the drive shaft, with compensation for the relative deviation of the two axes, cushioning, shock absorption, wear resistance, to adapt to the general, transmission torque 20- 35000.NM, operating temperature -35- +80 degrees Celsius and interchange with the German ROTEX coupling. Star elastic coupling polyurethane plastic for the elastic components, with a buffer, shock absorption, wear, easy disassembly, etc., operating temperature -35 ~ +80 degrees. Can be interchangeable with the West Germany ROTEX coupling. The polyurethane elastomer is limited by the convex claw block to avoid external deformation due to the internal deformation and centrifugal force generated by the impact. The concave surface of the pawl makes the surface pressure on the involute tooth very small and the teeth are overloaded , Teeth still do not wear or deformation.
