SWC_WH non-stretchable welded couplings is one of the most commonly used couplings, using its structural features can not make the same axis or axis angle larger or axial movement of the larger two-axis constant angular rotation, and reliable To transmit torque and movement. With a strong displacement compensation ability, compact structure, high transmission efficiency, easy maintenance and so on.
SWC_WH non-telescopic welded coupling is widely used in metallurgical machinery, petroleum machinery, paper machinery, engineering machinery, lifting transport machinery and other heavy machinery and so on. In China, the cross shaft type universal coupling standard according to its bearing fixed way is divided into SWP type (split bearing seat), SWl type (overall fork head), SWZ type (overall bearing seat) and so on. Various structural features have their own strengths.

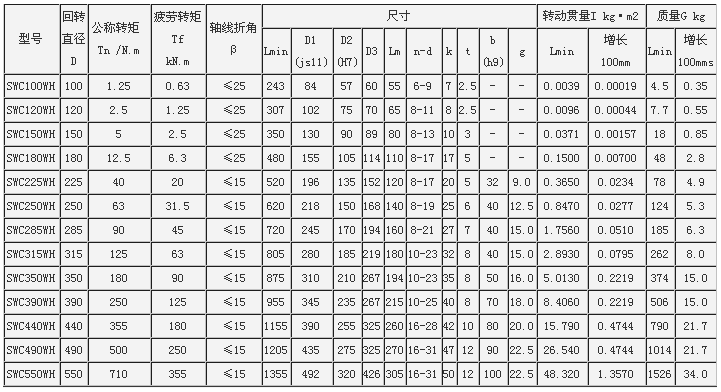

SWC_WH non-telescopic welding coupling basic parameters and the main dimensions:
