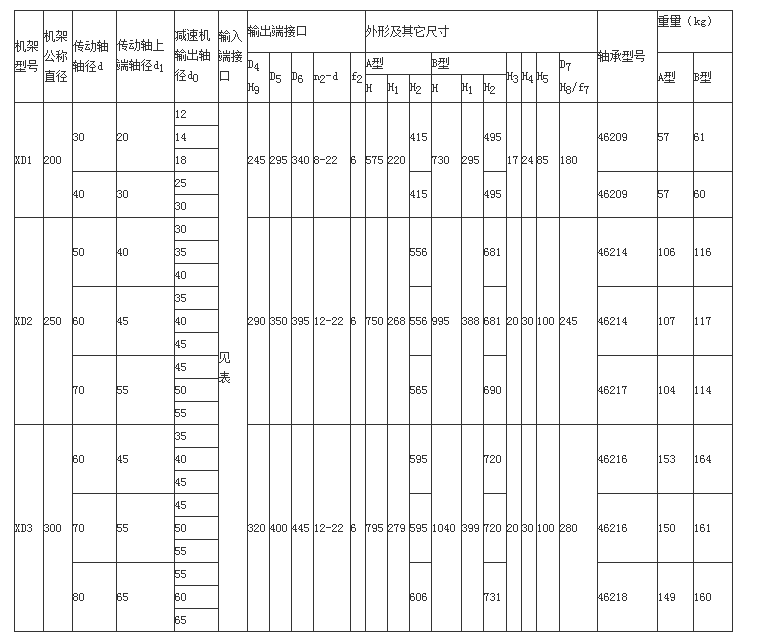

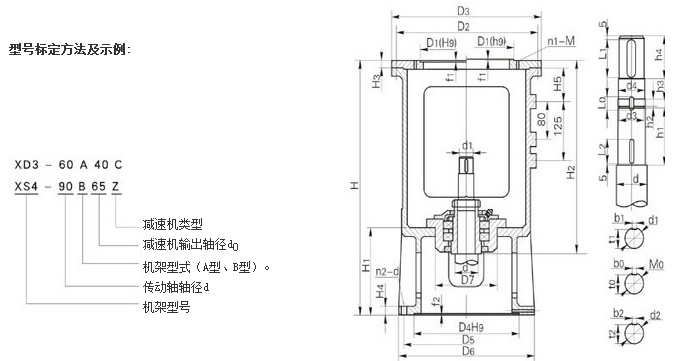

This series of racks is the latest standard of the chemical industry rack, is for the mixing drive (HG21563-95) supporting the rack. XD type for a single point of the rack, reducer
The shaft is connected with the stirring shaft with the DF type coupling, the XS type is the double fulcrum frame, the reducer shaft is connected with the HL type coupling, and the two points are connected with the DF type coupling.
Frame type A (shaft seal with 2001,2003,2004,2006 type mechanical seal) or B type (shaft seal (2002,2005,2007 type mechanical seal or 506,
516,606,616 type packing box). The rack output connector can be connected to the mounting bottom cover and the kettle flange shown in Section 9 (Section 2).
This series of racks of versatility, due to the choice of DF coupling and installation of the bottom cover of the restraint device, so do not remove the reducer and rack conditions, in the rack
Side window can be removed with short section coupling, bearing chamber and mechanical seal or stuffing box.
