The company produces nearly 30 categories, including more than 140 kinds of stirrer, from the most common (including the existing HB5 standard, SB90 standard various agitators) to a variety of complex shapes or special purpose stirrer. According to H / T2123-91 standard specifications of the series of manufacturing, but also according to the user production process needs, on behalf of the design and manufacture of various special requirements, special specifications or special purpose of the mixer.

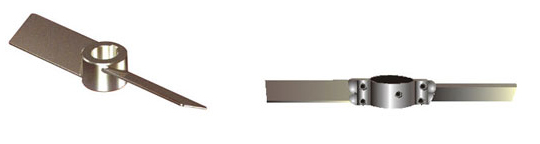

Oblique paddle type agitator

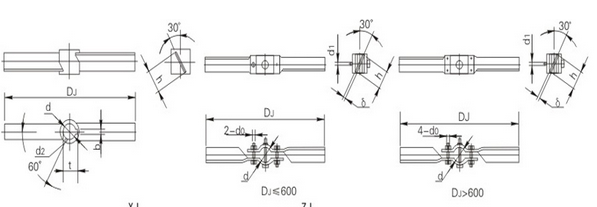

Oblique leaves overall paddle type XJ, oblique leaves can be docked type ZJ

    The agitator blade can be angled at 24 °, 45 ° or 60 °, with axial shunt, radial shunt, and the flow pattern is more complex than the flat blade. The discharge energy is higher than the equator and the overall effect is better. The same process, so the application frequency is higher than the flat blade type, the operating conditions with the flat blade type.
