The company produces nearly 30 categories, including more than 140 kinds of stirrer, from the most common (including the existing HB5 standard, SB90 standard various agitators) to a variety of complex shapes or special purpose stirrer. According to H / T2123-91 standard specifications of the series of manufacturing, but also according to the user production process needs, on behalf of the design and manufacture of various special requirements, special specifications or special purpose of the mixer.

Mixer Model labeling method:

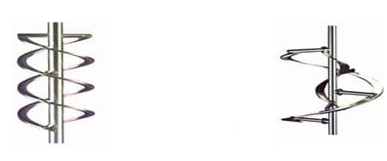

Screw screw stirrer

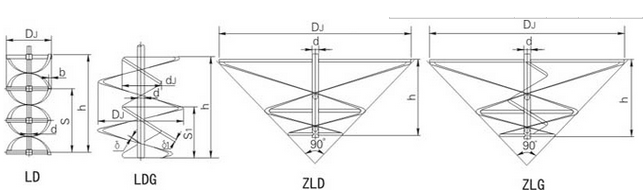

Ribbon-LD, Cone Bottom Ribbed-ZLD, Screw Screw-LDG, Cone Bottom Screw Screw-ZLG

     This type of agitator is a slow type agitator, often in the laminar flow area operation, the liquid along the spiral surface rise or fall to form the axial up and down circulation, suitable for medium and high viscosity liquid mixing and heat transfer process. Common medium viscosity μ <105cP, commonly used speed n = 0.5-50rpm, v = 2m / s. LD ribbed agitator ribbed corridor close to the inner wall of the mixing tank, stirring diameter, and strengthen the liquid into the tank up and down the cycle, high viscosity liquid heat transfer process is applicable. LDG screw with screw combination, with both screw and ribbon characteristics, to strengthen the liquid inside and outside the cycle, especially for non-Newtonian plastic and viscoelastic liquid effective. ZLD cone bottom screw type, ZLG cone bottom screw with screw type, which is characterized by the bottom shape and conical bottom can be matched, according to the requirements of design.

• Oblique paddle type agitator
• Four leaf propeller stirrer
