The company produces nearly 30 categories, including more than 140 kinds of stirrer, from the most common (including the existing HB5 standard, SB90 standard various agitators) to a variety of complex shapes or special purpose stirrer. According to H / T2123-91 standard specifications of the series of manufacturing, but also according to the user production process needs, on behalf of the design and manufacture of various special requirements, special specifications or special purpose of the mixer.

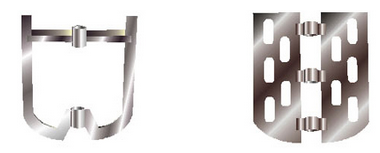

Special frame type agitator

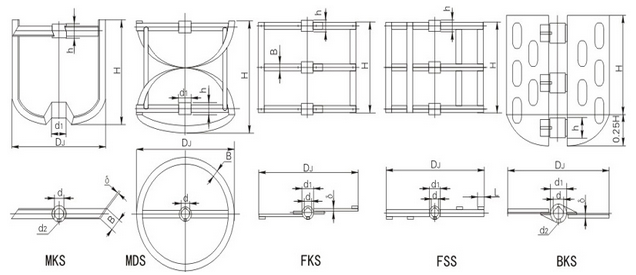

Anchor frame type MKS, anchor type MDS, box type FKS, square grid type FSS, frame type BKS
This type of mixer for the slow type of mixer, suitable for high viscosity liquid mixing, heat transfer reaction process. Μ <105cP, speed n = 1-100rpm.
Bolt frame (MKS) low speed rotation along the wall can get a large shear force, to prevent the settlement and wall attachment, the bottom shape fit oval cans and the middle of the bottom bearing.
An anchor tape (MDS) is a combination of a ribbon and a frame that combines the effects of a ribbon and a frame stirrer.
Box type (FKS), square grid (FSS) shape easy to make easy, the same performance with the box, medium viscosity mixing, deep solution more suitable for some.
Plate and frame (BKS) is another simple slow stirrer, the opening of the frame, its shape number, distribution type, can be changed as needed.
