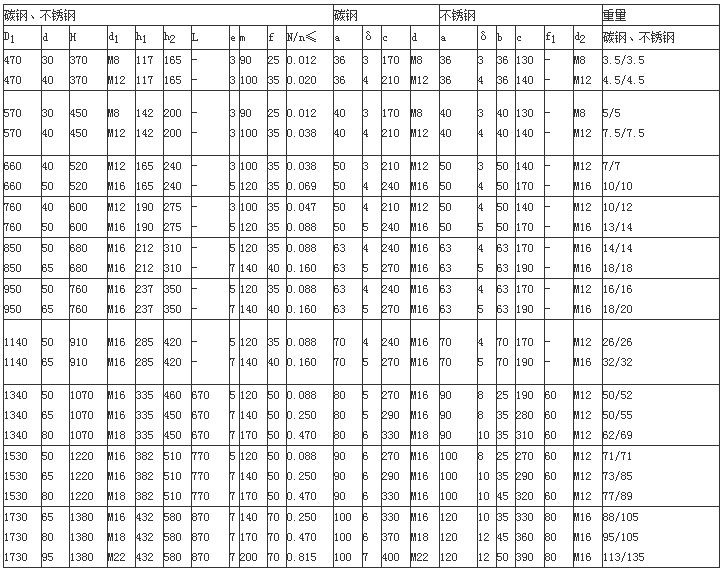

The company produces nearly 30 categories, including more than 140 kinds of stirrer, from the most common (including the existing HB5 standard, SB90 standard various agitators) to a variety of complex shapes or special purpose stirrer. According to H / T2123-91 standard specifications of the series of manufacturing, but also according to the user production process needs, on behalf of the design and manufacture of various special requirements, special specifications or special purpose of the mixer.

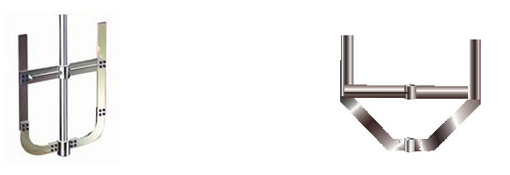

Box, anchor type agitator

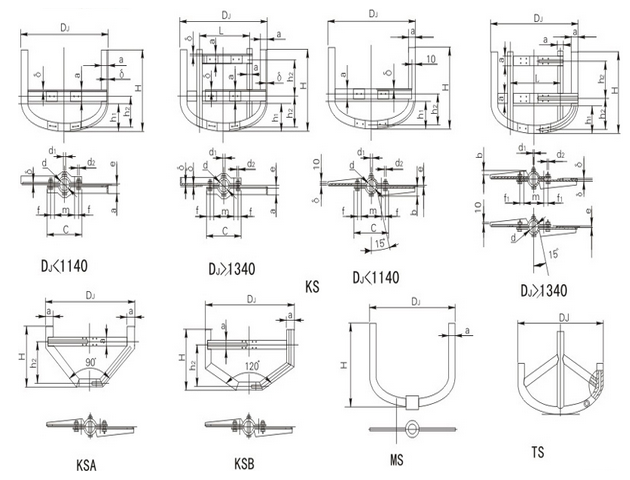

Oval bottom frame type -KS, right angle conical bottom frame type -KSA, obtuse angle pyramid bottom frame type -KSB, anchor type-MS, enameled anchor type-TS

   This type of stirrer is a slow-type agitator, suitable for high viscosity liquid mixing, heat transfer or reaction process. Often in the laminar flow operation, resulting in horizontal ring flow, such as the folding or angle-type leaves, can increase the vortex near the blade. You can add levers and beams to the oars as needed to increase the mixing range. Applicable medium sticky range μ <105cP, speed n = 1-100rpm.

• Special frame type agitator
• Three wide leaf propeller stir
