The company produces nearly 30 categories, including more than 140 kinds of stirrer, from the most common (including the existing HB5 standard, SB90 standard various agitators) to a variety of complex shapes or special purpose stirrer. According to H / T2123-91 standard specifications of the series of manufacturing, but also according to the user production process needs, on behalf of the design and manufacture of various special requirements, special specifications or special purpose of the mixer.

Mixer Model labeling method:

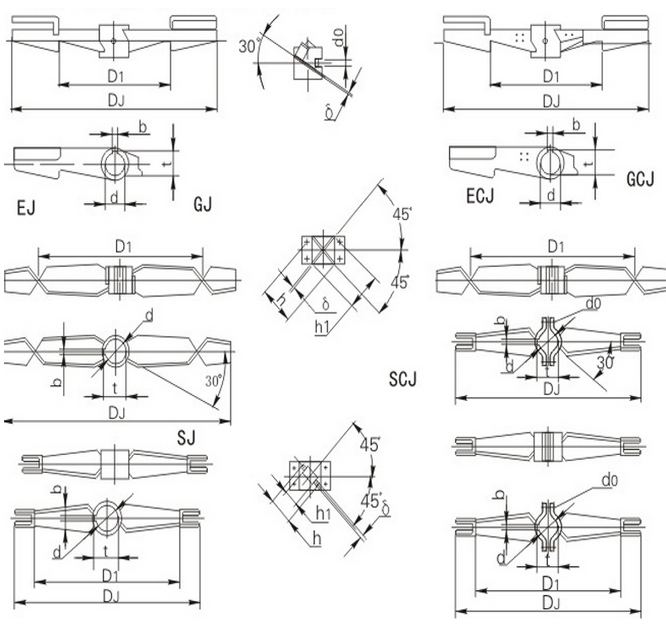

Folding blade type agitator

E-type folding blade type EJ, E-type folding leaf can be docked ECJ, G-type folding paddle type GJ, G-type folding leaf can be docked GCJ, S-type double folding leaf blade SJ, S-type double folding leaf CJ, C-type double-folded leaf blade CJ, C-type double folding leaf can be docked type CCJ

    This type of agitator is a kind of oblique paddle-type derivative, which strengthens the flow state at the end of the leaf. The turbulence is strengthened and the shear effect is obviously improved. The mixing, dispersing, suspension and heat transfer of the phase difference Effect, but because of the complex paddle, high manufacturing costs, limited to one.

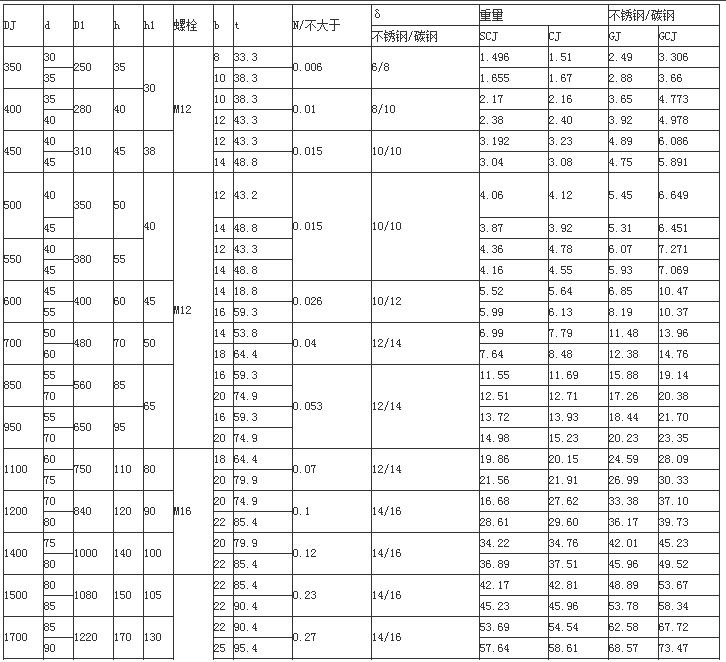

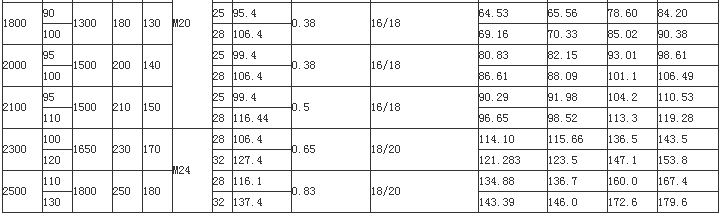

Folding blade type agitator main dimensions

• Open the turbo stirrer
• Four leaf open turbo stirrer
