The company produces nearly 30 categories, including more than 140 kinds of stirrer, from the most common (including the existing HB5 standard, SB90 standard various agitators) to a variety of complex shapes or special purpose stirrer. According to H / T2123-91 standard specifications of the series of manufacturing, but also according to the user production process needs, on behalf of the design and manufacture of various special requirements, special specifications or special purpose of the mixer.

Mixer Model labeling method:

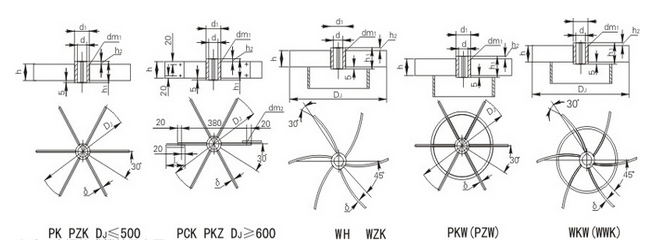

Open the turbo stirrer

Six straight leaves open the turbine-type PK, six narrow leaf stable ring open turbine PZW, six straight leaves can be opened open turbine PCK, six curved leaves open turbine WK, six straight leaves stable ring open turbine PKW, six narrow Leaf open WZK, six narrow leaves as a whole open turbine PZK, six curved lobes stable ring open turbine WKW, six narrow leaves removable open turbo PKZ, six curved narrow leaf stability ring open turbine WWK

    This type of mixer flow for the radial flow, in the baffle can be formed from the paddle for the upper and lower circulation, with high shear and a large cycle of energy, which straight leaves open turbine shear force , Curved leaves open the turbine shear force minimum, oblique leaves open the turbine center. So straight leaves open the turbine is more suitable for decentralized operation. Curved leaves discharge performance, the blade is not easy to wear, more suitable for fixed suspension. It is also suitable for solid dissolution. Other mixing process, they can be applied, so the turbo mixer is the most extensive process of the mixer, for the viscosity range μ <5 × 104ρ <2000kg / m3, the commonly used speed n = 10-300rpm, v = 4-100m / s. The maximum speed of up to 600rpm, commonly used size: DJD = 0.2-0.5, b / DJ = 0.2 (wide)

• Three wide leaf propeller stir
• Folding blade type agitator
