LLB tire coupling (JB / T10541-2005) original standard (JB / ZQ4018-85) autocad ma

● The coupling is a high-elastic coupling, with good shock absorption buffer and excellent shaft offset compensation performance, operating temperature -20 ~ 80 degrees Celsius, transmission torque 10 ~ 20000N.M, suitable for Wet, dusty, shock, vibration, reversing changeable and starting frequent working conditions, and easy to disassemble, because the elastic component is a whole body of the tire, easy disassembly and maintenance, without lubrication, durable and reliable.

● The standard half-coupling structure is of the K-type, which is no longer marked in the representation.

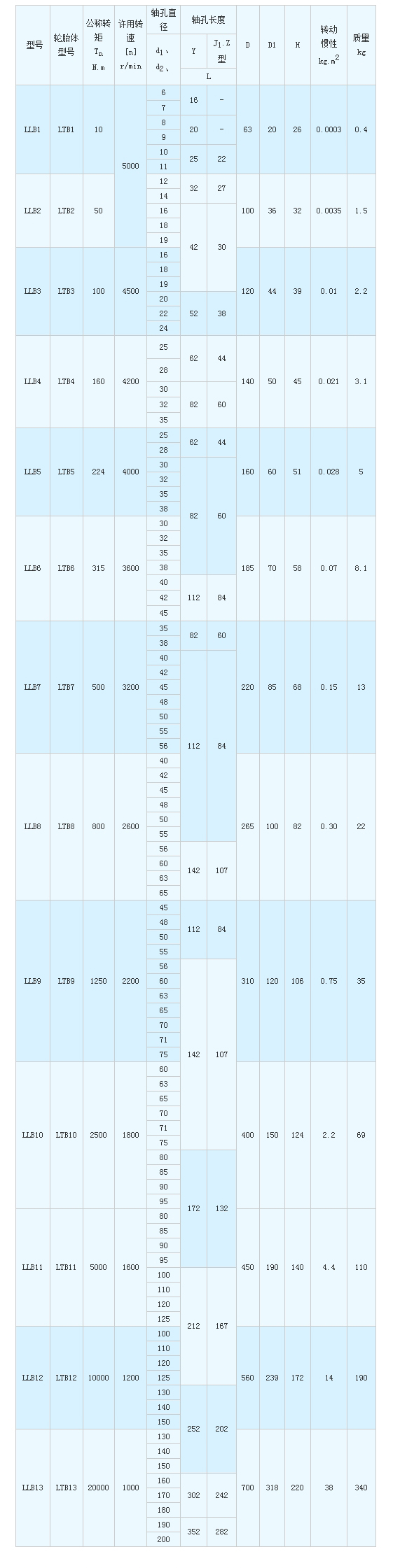

       Basic performance parameters and main dimensions of LLB type tire couplings
