DL polygonal rubber coupling (GB5512-91)
● Polygonal rubber coupling is made of rubber material, made of circular cross-shaped 6 (or 8 angle) shaped elastic parts, embedded in each place with rubber vulcanization bonded together after the casing, the use of wear The 6 (or 8) bolts of the casing are staggered with the coupling of the half coupling on the main and driven ends. Polygonal rubber coupling structure is simple, without lubrication, easy assembly and disassembly, with the ease of transmission shaft torsional vibration and shock load, to prevent the transmission shaft resonance and can compensate for the relative deviation of the two axes of performance for medium torque 50 -8000N. M light industry, engineering machinery, mining machinery and other industries, for dust, moisture conditions of the environment, the working temperature of -30-60C, for the connection of shaker, the effect is significant.
Old model: CGM

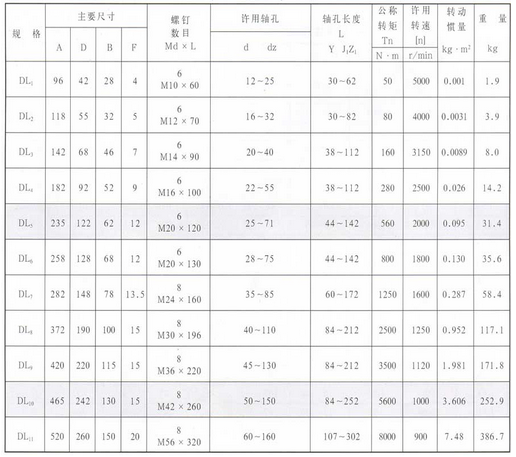

DL polygonal rubber coupling basic parameters and the main dimensions
