The company produces nearly 30 categories, including more than 140 kinds of stirrer, from the most common (including the existing HB5 standard, SB90 standard various agitators) to a variety of complex shapes or special purpose stirrer. According to H / T2123-91 standard specifications of the series of manufacturing, but also according to the user production process needs, on behalf of the design and manufacture of various special requirements, special specifications or special purpose of the mixer.

Three wide leaf propeller stirrer

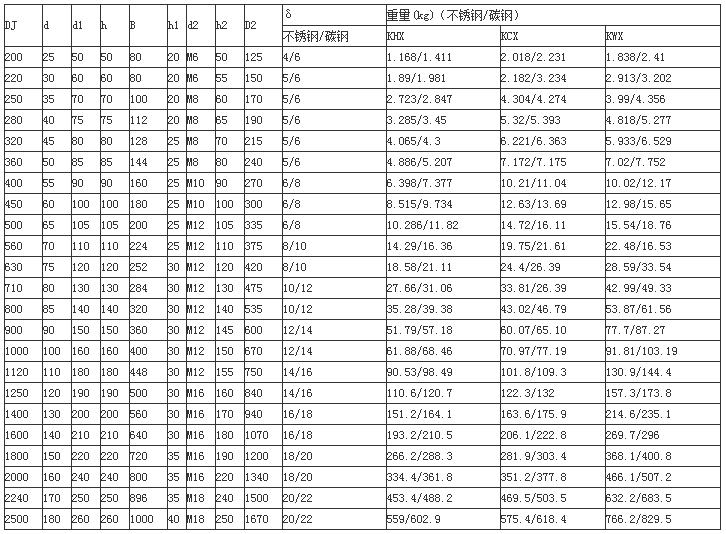

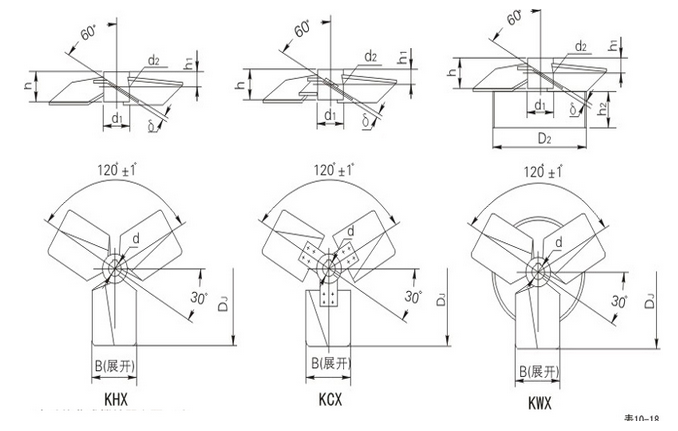

Three wide leaf propeller-KHX, three wide leaf stable propeller-KWX, three wide leaf detachable propeller-KCX

     The pitch of the paddle front and the movement of the paddle-type agitator is continuous (as with the propeller), and the paddle has a fixed dip as the oblique paddle, so it combines the propulsion The characteristics of the paddle and oblique blade turbine paddle are widely used as a stirrer, which is similar to the propeller type of manifold, has large circulation capacity, small power consumption, and improves the shear performance of oblique turbine blades. Its scope of application is relatively large. Low viscosity liquid mixing, dispersion, dissolution, solid suspension, crystallization, heat transfer, liquid phase reaction and other processes are applicable in some gas absorption process has also been applied, three wide leaf rotation is more commonly used type, commonly used medium viscosity The range of μ <10000cP, the commonly used operating speed n = 30-500rpm, v = 3-15m / s, commonly used size DJ / D = 0.2-0.5, B / DJ = 0.4 (wide), commonly used L, can be made right-handed.

• Anchor, box type stirrer
• Open the turbo stirrer
